Same scene, 85 mm

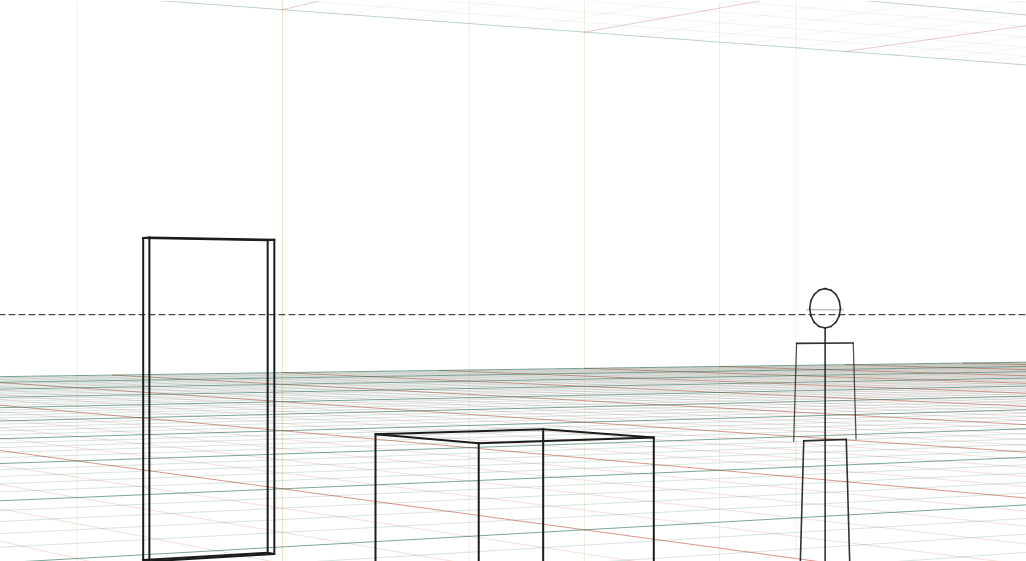

The same scene at 85 mm from 12 m: compressed, nearly an elevation drawing.
Open in the Perspective Box GeneratorDownload PNGLesson: Perspective Basics: Horizon, Vanishing Points and Terms
What to look at
Vanishing points far off the page; edges are almost parallel.
Objects 4 m apart in depth look stacked against each other.
Long lenses make crowds dense and streets short; this is the telephoto look.
The camera
| Lens | 85 mm on full frame |
| Camera height | 1.6 m above the floor (standing) |
| Rotation | 32° to the scene's axes |
| Tilt | level (verticals stay vertical) |
| Objects | box 1 × 1 × 1 m · figure 1.75 m · box 0.9 × 0.1 × 2.1 m |
| Floor | 1 m squares |
Open the reference in the tool to move the camera, change the lens, or add your own objects at real sizes; the share link keeps your version. Draw over the PNG at 30–50% opacity in any app with layers.
