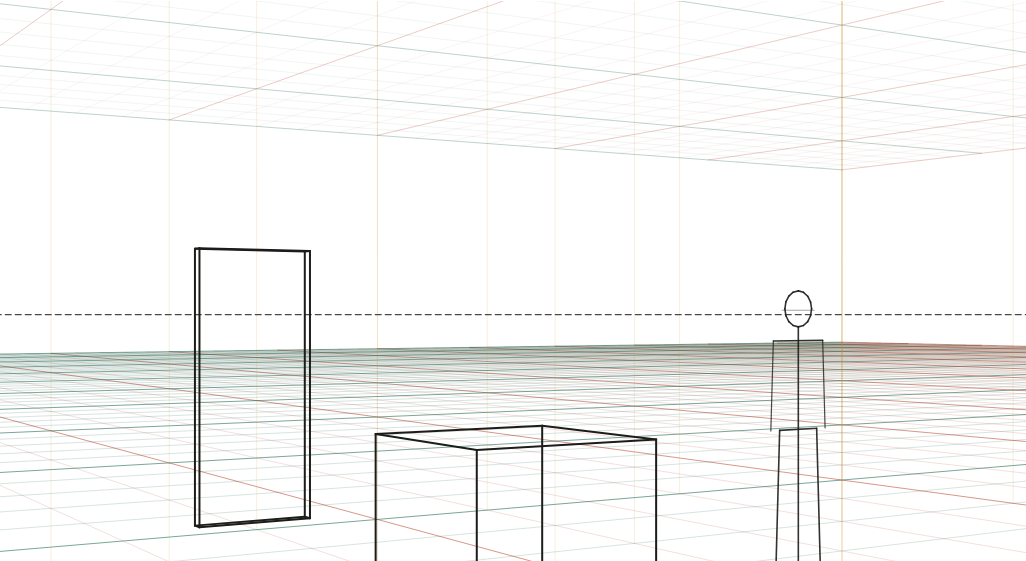

Same scene, 50 mm
The same crate, figure and door at 50 mm, framed the same size: the natural view.
What to look at
Vanishing points further apart; convergence is gentle.
To frame the crate the same size the camera moved back to 7 m, which flattens the gaps between objects.
This is roughly what the eye sees when it attends to one thing.
What this scene is for
The middle reference of the three: the same crate, figure and door from 7 m, which is roughly what the eye sees when it settles on something. This is the safe default for illustration when no lens has been decided.
The mistake it settles
Using a 50 mm feel for an interior. To frame a room at 50 mm you have to stand outside it. If your drawing shows a whole living room with gentle convergence, the geometry is quietly impossible, and readers feel it even if they cannot name it.
The camera
| Lens | 50 mm on full frame |
| Camera height | 1.6 m above the floor (standing) |
| Rotation | 32° to the scene's axes |
| Tilt | level (verticals stay vertical) |
| Objects | 1 m cube · 1.75 m figure · 2.1 m door |
| Floor | 1 m squares |
Measured off this render
Taken from the same camera model the tool draws with, on the 1340 × 754 PNG above.
| Angle of view | 39.6° across (50 mm on full frame) |
| Horizon | 422 px from the top, 56% of the image height |
| Depth-axis vanishing point | 493 px beyond the left edge |
| Width-axis vanishing point | 2,308 px beyond the right edge |
| Object | Distance | Height on the render | Below the horizon |
|---|---|---|---|
| 1 m cube | 7 m | 266 px | all of it |
| 1.75 m figure | 9.2 m | 362 px | 91% |
| 2.1 m door | 11.2 m | 355 px | 76% |
Draw it from these numbers
- Rule the horizon across the sheet at 56% of the picture height — 422 px down on this 754 px render. Every other line in the scene is measured from it.
- Two vanishing points on that line: 493 px beyond the left edge, and 2,308 px beyond the right edge — far enough out that you should match the grid angles instead of chasing it.
- Set the scale from the 1.75 m figure at 9.2 m: 362 px tall, with 91% of it below the horizon. That share is the camera height divided by the object's height (1.6 ÷ 1.75 m), and it is the same for every object of that height anywhere in the picture.
Open the reference in the tool to move the camera, change the lens, or add your own objects at real sizes; the share link keeps your version. Draw over the PNG at 30–50% opacity in any app with layers.
Question
Why is 50 mm called normal?
Because its 40° angle of view is close to the part of a scene the eye attends to at once, and its convergence looks like unforced vision. It is a convention rather than a law — the eye's full field is far wider — but as a default for a drawing it rarely looks wrong.
