Car box, hero angle, 28 mm

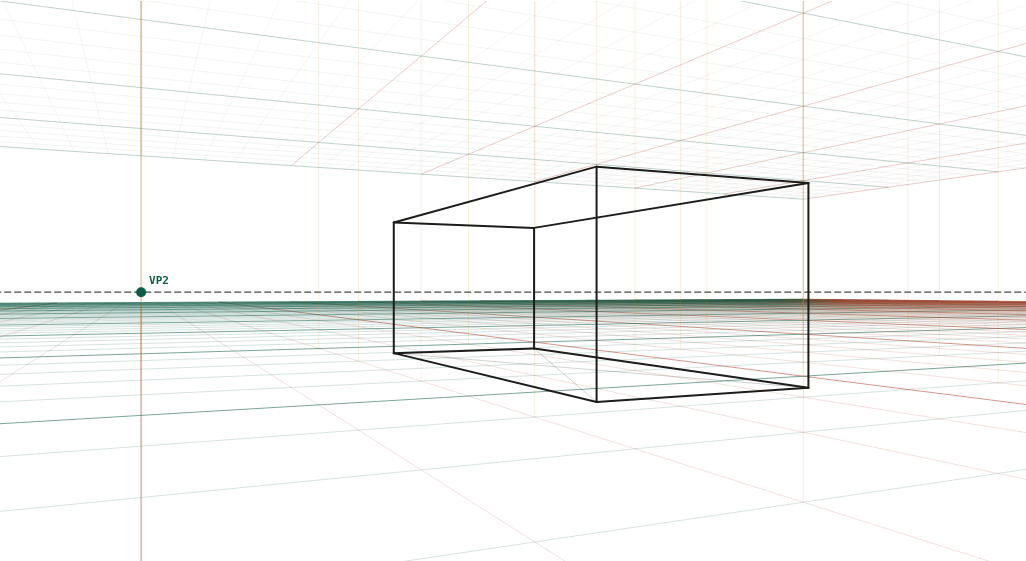

The same car box at 7.5 m, camera 0.7 m, 28 mm: the near end looms.
What to look at
The wide lens pulls the near corner toward you and shrinks the far end fast.
Camera at bumper height: the horizon cuts the car low and the roof is hidden.
This is the advertising angle; it flatters sports cars and exaggerates family hatchbacks.
What this scene is for
The same car box at 7.5 m on a 28 mm lens with the camera at bumper height. Use it for advertising angles, action panels and anything where the vehicle should look fast and planted rather than measured.
The mistake it settles
Copying this angle for a technical drawing. The wide lens stretches the near corner and shrinks the far end, which flatters a sports car and lies about proportions. If the drawing has to be accurate, use the 50 mm reference; if it has to be exciting, use this one on purpose.
The camera
| Lens | 28 mm on full frame |
| Camera height | 0.7 m above the floor (low) |
| Rotation | 25° to the scene's axes |
| Tilt | level (verticals stay vertical) |
| Objects | 1.8 × 4.5 × 1.5 m block |
| Floor | 1 m squares |
Measured off this render
Taken from the same camera model the tool draws with, on the 1340 × 754 PNG above.
| Angle of view | 65.5° across (28 mm on full frame) |
| Horizon | 392 px from the top, 52% of the image height |
| Depth-axis vanishing point | 184 px from the left edge |
| Width-axis vanishing point | 1,565 px beyond the right edge |
| Object | Distance | Height on the render | Below the horizon |
|---|---|---|---|
| 1.8 × 4.5 × 1.5 m block | 7.5 m | 208 px | 47% |
Draw it from these numbers
- Rule the horizon across the sheet at 52% of the picture height — 392 px down on this 754 px render. Every other line in the scene is measured from it.
- Two vanishing points on that line: 184 px from the left edge, and 1,565 px beyond the right edge — far enough out that you should match the grid angles instead of chasing it.
- Set the scale from the 1.8 × 4.5 × 1.5 m block at 7.5 m: 208 px tall, with 47% of it below the horizon. That share is the camera height divided by the object's height (0.7 ÷ 1.5 m), and it is the same for every object of that height anywhere in the picture.
Open the reference in the tool to move the camera, change the lens, or add your own objects at real sizes; the share link keeps your version. Draw over the PNG at 30–50% opacity in any app with layers.
Question
Why do car adverts use a low, wide angle?
It exaggerates the near end and hides the roof, so the car looks longer, lower and wider than it is. The same lens at the same height makes a family hatchback look like a wedge, which is exactly why the technique survives.
